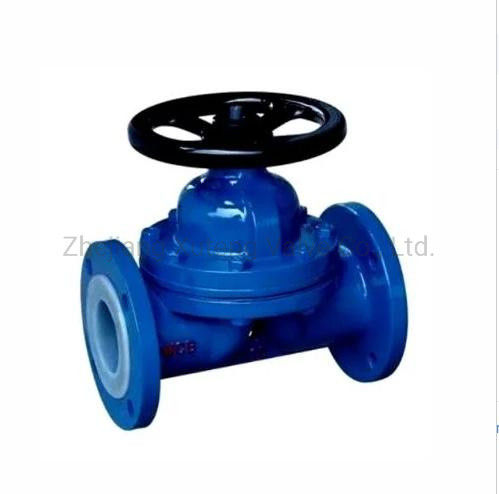

Ordinary Temperature Water Control Valve Pressure Reducing Diaphragm Valve G41F-16

Name: Ordinary Temperature Water Control Valve Pressure Reducing Diaphragm Valve G41F-16
Brand: Ordinary Temperature Water Control Valve Pressure Reducing Diaphragm Valve G41F-16
SKU: Ordinary Temperature Water Control Valve Pressure Reducing Diaphragm Valve G41F-16
Rating: 5 (152 reviews)

Product Details

Place of Origin: Zhejiang China

Certification: CE/SGS/ISO9001

Payment & Shipping Terms

Minimum Order Quantity: 1

Price: negotiate

Payment Terms: LC, T/T, D/P, PayPal, Western Union, Small-amount payment

Get Best Price

Product Details

Product Description

Highlight:

Model NO.:	G41F-16	Connection:	Flanged Diaphragm Valve
Material:	Cast Iron	Structure:	Roof Type Diaphragm Valve
Pressure:	Ordinary Temperature	Flow Direction:	Reversing
Function:	Solenoid Valve, Electronic Type, Intelligent Type, Field Bus	Usage:	Safety, Emptying, Drain, Temperature Control, Flow Control
Standard:	DIN, GB, ANSI, BSW, JIS	Transport Package:	Carton
Specification:	DN15~600	Trademark:	XT
Origin:	Zhejiang Wenzhou	HS Code:	848180409
Supply Ability:	50000/Year	Package Size:	100.00cm * 100.00cm * 100.00cm
Package Gross Weight:	500.000kg	Media:	Gas,Oil,Water
Temperature:	Ordinary Temperature	Actuator:	Manual
Customization:	Available \| Customized Request	Shipping Cost :	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment	Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Model NO.:	G41F-16
Connection:	Flanged Diaphragm Valve
Material:	Cast Iron
Structure:	Roof Type Diaphragm Valve
Pressure:	Ordinary Temperature
Flow Direction:	Reversing
Function:	Solenoid Valve, Electronic Type, Intelligent Type, Field Bus
Usage:	Safety, Emptying, Drain, Temperature Control, Flow Control
Standard:	DIN, GB, ANSI, BSW, JIS
Transport Package:	Carton
Specification:	DN15~600
Trademark:	XT
Origin:	Zhejiang Wenzhou
HS Code:	848180409
Supply Ability:	50000/Year
Package Size:	100.00cm * 100.00cm * 100.00cm
Package Gross Weight:	500.000kg
Media:	Gas,Oil,Water
Temperature:	Ordinary Temperature
Actuator:	Manual
Customization:	Available \| Customized Request
Shipping Cost :	About Shipping Cost And Estimated Delivery Time.
:	Initial Payment Full Payment
Currency:	US$
Return&refunds:	You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.

Ordinary Temperature Water Control Valve Pressure Reducing Diaphragm Valve G41F-16

Diaphragm valve is a globe valve that uses a diaphragm as an opening and closing member to close the flow channel, cut off the fluid, and separate the inner cavity of the valve body and the inner cavity of the valve cover.

Diaphragms are usually made of elastic, corrosion-resistant, impermeable materials such as rubber and plastic. The valve body is mostly made of plastic, glass fiber reinforced plastic, ceramic or metal rubber-lined material. Simple structure, good sealing and anti-corrosion performance, and small fluid resistance. For low pressure, low temperature, highly corrosive and medium containing suspended substances. According to the structure, it can be divided into roof type, cut-off type, gate type and so on. According to the driving mode, it is divided into manual, pneumatic and electric.

Certificate:

Basic Info.
Model No.: G41F-16C
Material: Cast Steel
Structure: Diaphragm Valve
Actuator: Manual
Function: Solenoid Valve, Intelligent Type, Field Bus
Connection: Flanged Diaphragm Valve
Standard: DIN, GB, ANSI, DIN, API, ANSI, Asme, Bs, JIS, GB
Size: Dn25-Dn250
Export Markets: Global
Additional Info.
Trademark: XT
Packing: Standard Export Packing
Standard: DN15~DN600
Origin: China
HS Code: 8481804090
Production Capacity: 20000PCS/Year
Product Description

Teflon-Lining Diaphragm Valves G41F-16

Body materials
Brass
Steel type:
Cast Iron
Ductile Iron
Carbon Steel
Stainless Steel
Plastic type:
ABS (Acrylonitrile butadiene styrene)
PVC-U (Polyvinyl chloride, unplasticized) also known as PVCu or UPVC
PVC-C (Polyvinyl chloride, post chlorinated) also known as PVCc or CPVC
PP (Polypropylene)
PE (Polyethylene) also known as LDPE, MDPE and HDPE (see note)
PVDF (Polyvinylidene fluoride)
Body lining materials
Depending on temperature, pressure and chemical resistance, one of the following is used:
Unlined type
Rubber lined type:
NR/Hard Rubber/Ebonite,
BR/Soft rubber
EPDM
Fluorine plastic lined type
FEP/F46
PFA
PO
Diaphragm materials
Unlined or Rubber Lined Type:
NR/Natural Rubber
NBR/Nitrile/Buna-N
EPDM
FKM/Viton
SI/Silicone rubber

Fluorine Plastic Type:
FEP/F46, with EPDM back
PTFE/F4, with EPDM back
PFA, with EPDM back

FAQ

Q : Are you a factory or a trading company?
A : We are a R & D factory.

Q : Which country do you export to?
A : We can export to any country according to buyer's need.

Q : Do you accept the customized order?
A : YES!

Q : What is your main market?
A :  Southeast Asia, Middle East, North America, South America, Europe, etc.

Q : Can you give me a discount?
A:  As you know, we are the manufacturer, so please trust us that our prices are competitive.
If the quantity is large, we can consider giving you a discount.

Q :  If the product has quality problems, what will you do?
A :  We will be responsible for all quality problems.

Q :What is your payment term?
A :1.T/T, 30% down payment, balance paid before shipment.
        2. Letter of credit.

Q: If the product has quality problems, what will you do?
A: We will be responsible for all quality problems.

Zhejiang Xuteng Valve Co., Ltd.
Address :Wenzhou City, Zhejiang Province, China
